Flutter C++ Memory allocation causes jank on raster thread - Android NDK Dart FFI

536

The actual cause, after discussions (in the comments of the question), is not because the memory allocation is too slow, but lie somewhere else - the calculations which will be heavy if the allocation is big.

For details, please refer to the comments and discussions of the question ;)

Share:
536
cs guy
Author by

cs guy

Just a random human trying to master cs

Updated on December 28, 2022

Comments

  • cs guy
    cs guy over 1 year

    I have a flutter app which uses Dart ffi to connect to my custom C++ audio backend. There I allocate around 10MB of total memory for my audio buffers. Each buffer has 10MB / 84 of memory. I use 84 audio players. Here is the ffi flow:

    C++ bridge:

    extern "C" __attribute__((visibility("default"))) __attribute__((used))
    void *
    loadMedia(char *filePath, int8_t *mediaLoadPointer, int64_t *currentPositionPtr, int8_t *mediaID) {
        LOGD("loadMedia %s", filePath);

        if (soundEngine == nullptr) {
            soundEngine = new SoundEngine();
        }

        return soundEngine->loadMedia(filePath, mediaLoadPointer, currentPositionPtr, mediaID);
    }


    In my sound engine I launch a C++ thread:

    void loadMedia(){

        std::thread{startDecoderWorker,
                        buffer,
        }.detach();
     }

    void startDecoderWorker(float*buffer){
         buffer = new float[30000]; // 30000 might be wrong here, I entered a huge value to just showcase the problem, the calculation of 10MB / 84 code is redundant to the code
    }


    So here is the problem, I dont know why but when I allocate memory with new keyword even inside a C++ thread, flutters raster thread janks and I can see that my flutter UI janks lots of frames. This is also present in performance overlay as it goes all red for 3 to 5 frames with each of it taking around 30 40ms. Tested on profile mode.

    Here is how I came to this conclusion: If I instantly return from my startDecoderWorker without running new memory allocation code, when I do this there is 0 jank. Everything is smooth 60fps, performance overlay doesnt show me red bars.

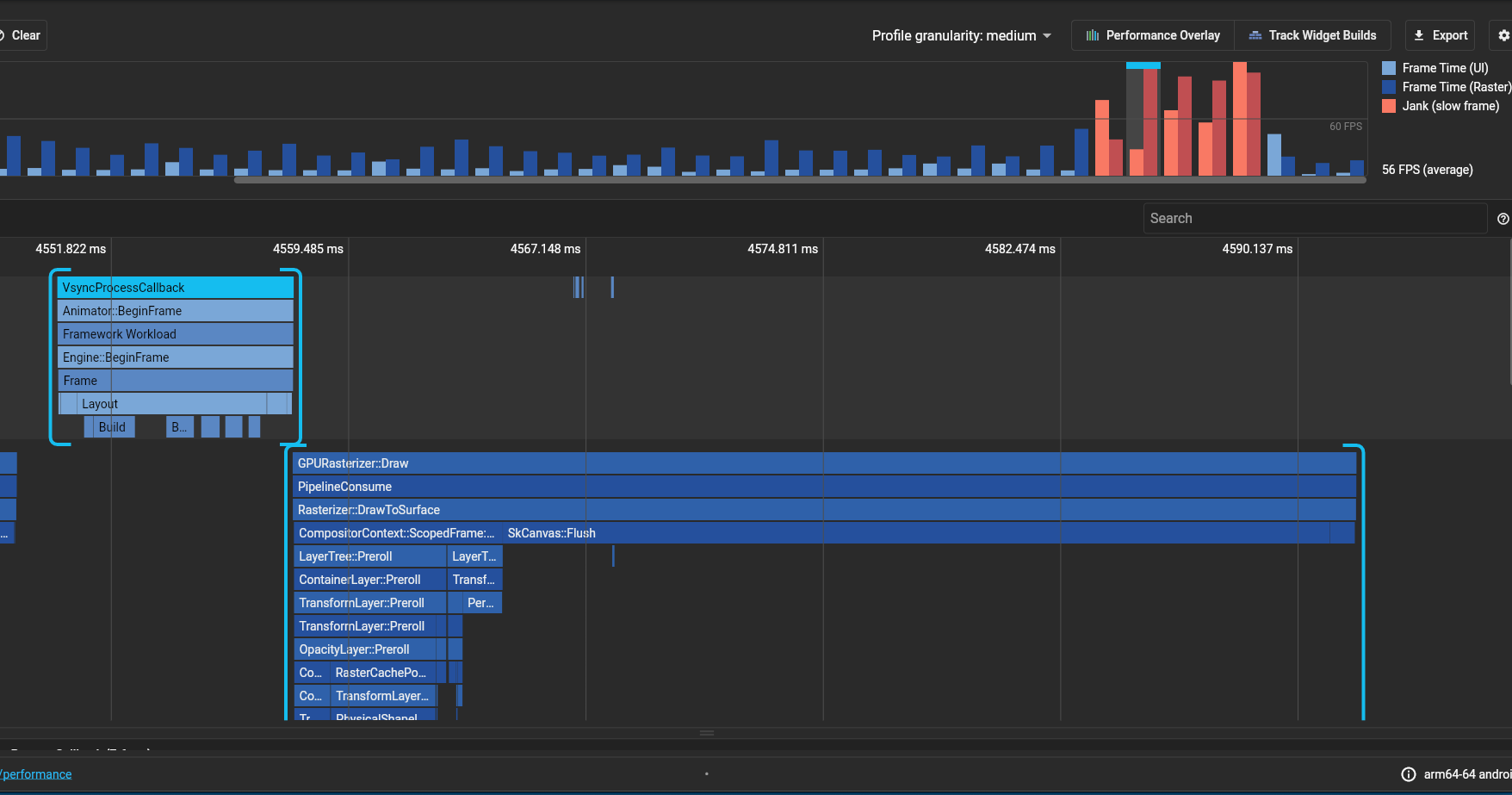

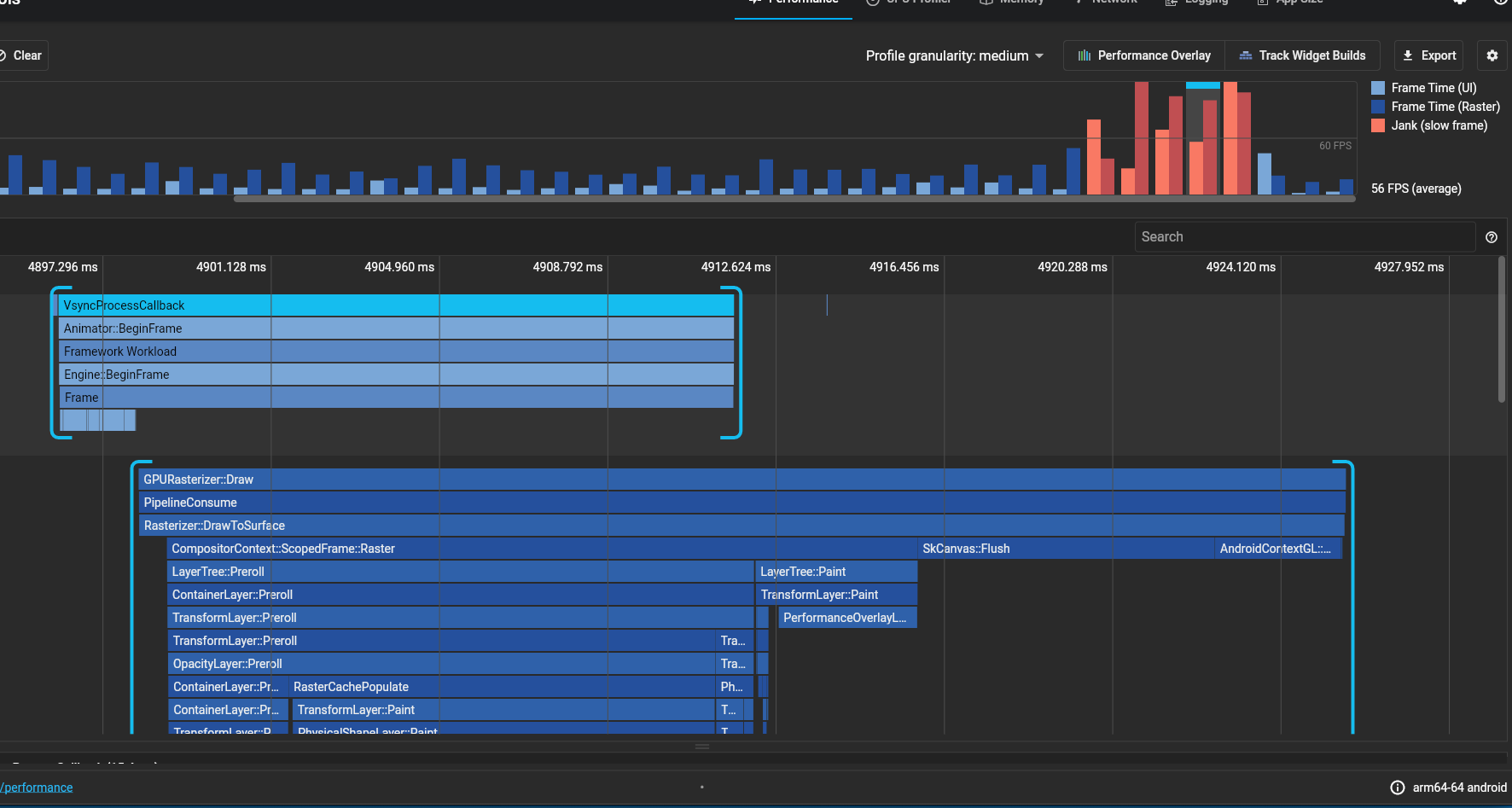

    Here are some screenshots from Profile mode:

    enter image description here enter image description here enter image description here
