How to draw the boxplot with significant level?
Solution 1

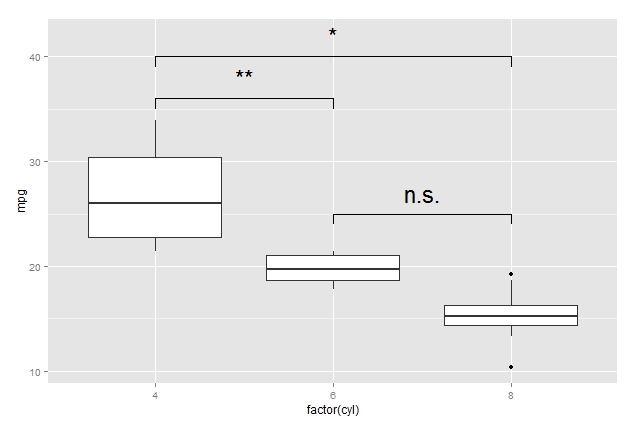

I don't quite understand what you mean by boxplot with significant level but here a suggestion how you can generate those bars: I would solve this constructing small dataframes with the coordinates of the bars. Here an example:
pp <- ggplot(mtcars, aes(factor(cyl), mpg)) + geom_boxplot()
df1 <- data.frame(a = c(1, 1:3,3), b = c(39, 40, 40, 40, 39))
df2 <- data.frame(a = c(1, 1,2, 2), b = c(35, 36, 36, 35))
df3 <- data.frame(a = c(2, 2, 3, 3), b = c(24, 25, 25, 24))
pp + geom_line(data = df1, aes(x = a, y = b)) + annotate("text", x = 2, y = 42, label = "*", size = 8) +
geom_line(data = df2, aes(x = a, y = b)) + annotate("text", x = 1.5, y = 38, label = "**", size = 8) +
geom_line(data = df3, aes(x = a, y = b)) + annotate("text", x = 2.5, y = 27, label = "n.s.", size = 8)
Solution 2
I know that this is an old question and the answer by DatamineR already provides one solution for the problem. But I recently created a ggplot-extension that simplifies the whole process of adding significance bars: ggsignif
Instead of tediously adding the geom_line
and annotate
to your plot you just add a single layer geom_signif
:
library(ggplot2)
library(ggsignif)
ggplot(iris, aes(x=Species, y=Sepal.Length)) +
geom_boxplot() +
geom_signif(comparisons = list(c("versicolor", "virginica")),
map_signif_level=TRUE)
Full documentation of the package is available at CRAN.
Related videos on Youtube
Samo Jerom
Updated on July 09, 2022Comments
-
Samo Jerom almost 2 years
Some time ago I asked a question about drawing boxplot Link1.
I have got some data with 3 different groups (or labels) Please down load here. I can use the following R codes to get the boxplot
library(reshape2) library(ggplot2) morphData <- read.table(".\\TestData3.csv", sep=",", header=TRUE); morphData.reshaped <- melt(morphData, id.var = "Label") ggplot(data = morphData.reshaped, aes(x=variable, y=value)) + + geom_boxplot(aes(fill=Label))
Here I just wondering how to put the significant level above the boxplot. To make myself clear I put a screenshot cut from a paper here:
-
vpipkt about 9 yearsIs the annotation the "significance" you desire the significance codes sometimes seen alongside p-values, as in
summary.lm
? And given the context, the null hypothesis is equal means for each pair? Is ggplot a requirement for you?
-
-
Parsa almost 8 yearsThanks for your answer! However this doesn't work if your ggplot has fill=factor(cyl) for instance, do you have any idea why this would be the case?
-
DatamineR almost 8 years@par Where did you put it? If you put it within the
geom_boxplot(aes(fill=factor(cyl)))
it works... -
pat_krat about 6 yearsYou have to add fill or color into the individual geoms, rather than into the main call to ggplot; otherwise, ggplot will take your aes() argument as global, and won't find it in your subsequent calls to geom. Thanks for this answer, though, it turned out to be super easy to do!
